HomepageDESOI w.i.l.m.a. - AY DESOI AirPower M35-3C VA

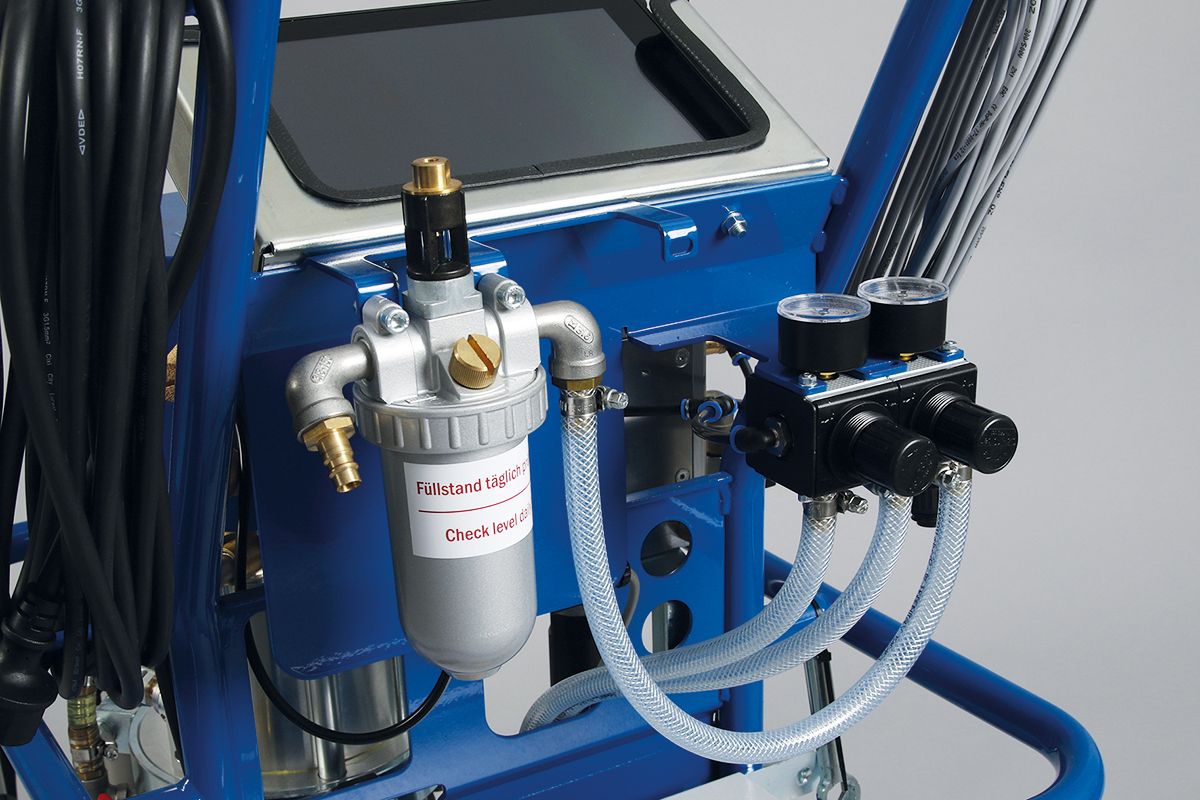

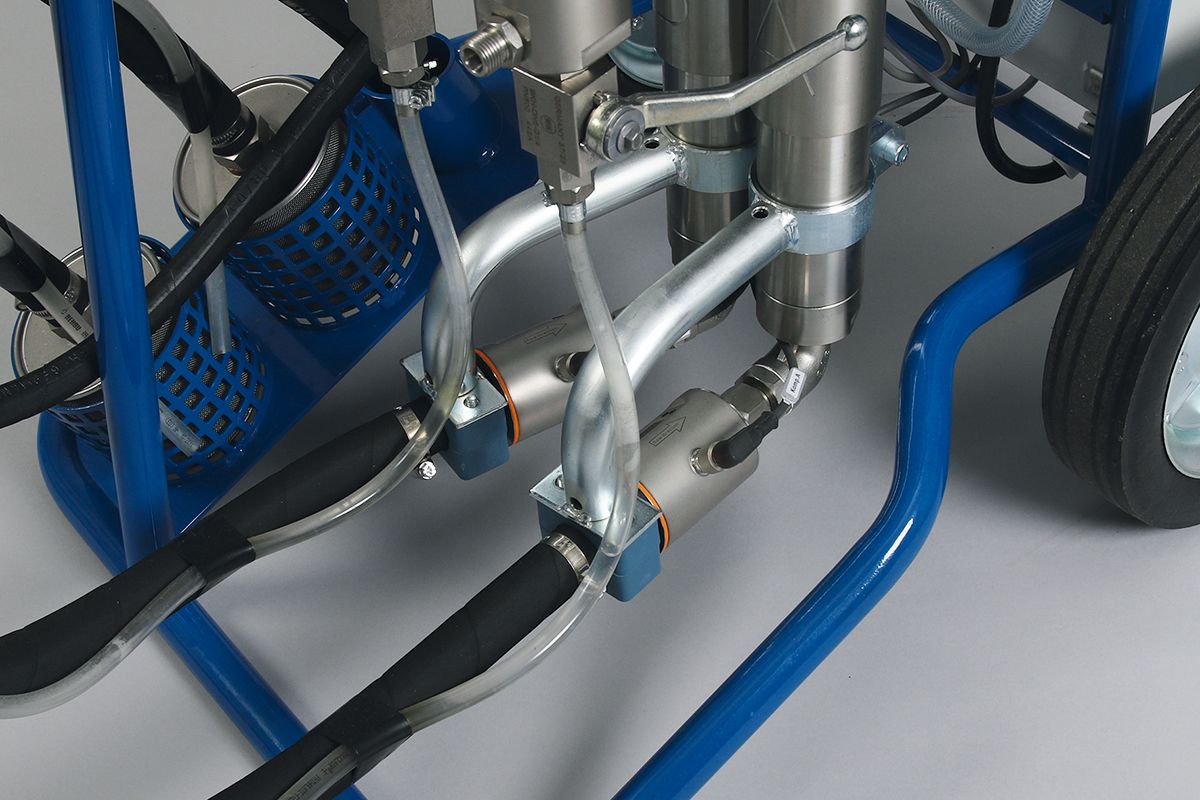

14290_DESOI_w.i.l.m.a_A.jpg 14290_DESOI_w.i.l.m.a._Wartungseinheit.jpg 14290_DESOI w.i.l.m.a - A_Durchflusssensor.jpg

DESOI w.i.l.m.a. - AY
DESOI AirPower M35-3C VA

Flyer - DESOI w.i.l.m.a.
moving device, 1.2 m suction system Ø 20 mm, with suction basket Ø 100 mm: component A and B: black, 2 x manometer 0 - 250 bar, rinsing pump S25, 1.2 m suction system Ø 13 mm with suction basket Ø 40 mm: black, material hose connection:, component A: external thread M16x1,5;, component B: external thread M14x1,5;, rinsing connection: external thread M12x1,5;, return hoses Ø 8 mm: transparent, air connection: air plug NW 7.2, DESOI w.i.l.m.a.: control cabinet with integrated control, 10 m supply cable, on/off switch, control lamp, 2 x flow sensor, pressure sensor, Tablet Microsoft Surface Go 2 Platinum with protective cover, incl. instruction manual, A professional briefing is mandatory. This is free of charge, via video conference. On-site instruction is also possible by, arrangement and at a charge., A tariff must be selected for the w.i.l.m.a. data management system.
Advantage/Notice
  • All material contacting parts of stainless steel
  • Big material passages
  • Easy maintenance and repair
  • Fixed mixing ratio 1 : 1 - continuously electronically monitored
  • You can find more information on the application and process techniques with the DESOI w.i.l.m.a. in the STUVA ABI leaflet "Sealing of structures by injection", 4th edition - Part III/1.3.2 from p. 57.
Material to be used
  • acrylate gel
Technical data
working pressure - infinitely variable 5 - 120 bar
delivery rate
- with air performance of 0,7 m³/min (2 x compressor V-Meko 400) max. 10 l/min
- with air performance of 1.3 m³/min max. 13 l/min
air consumption min. 0.5 m³/min
transmission ratio 1:15
mixing ratio 1:1
air pressure max. 8 bar
weight - control cabinet 8.62 kg
weight - tablet 0.68 kg
weight 85 kg
L x W x H - control cabinet 30 x 19 x 33 cm
L x W x H - tablet 22 x 14.5 x 2 cm
L x W x H 77 x 55 x 112 cm
rinsing pump
working pressure - infinitely variable 7 - 220 bar
delivery rate 5 l/min
transmission ratio 1:28
Product description

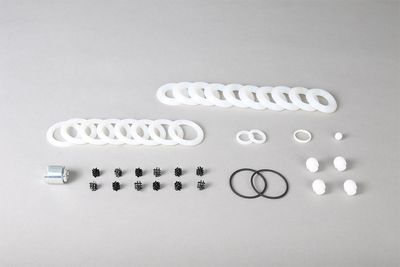

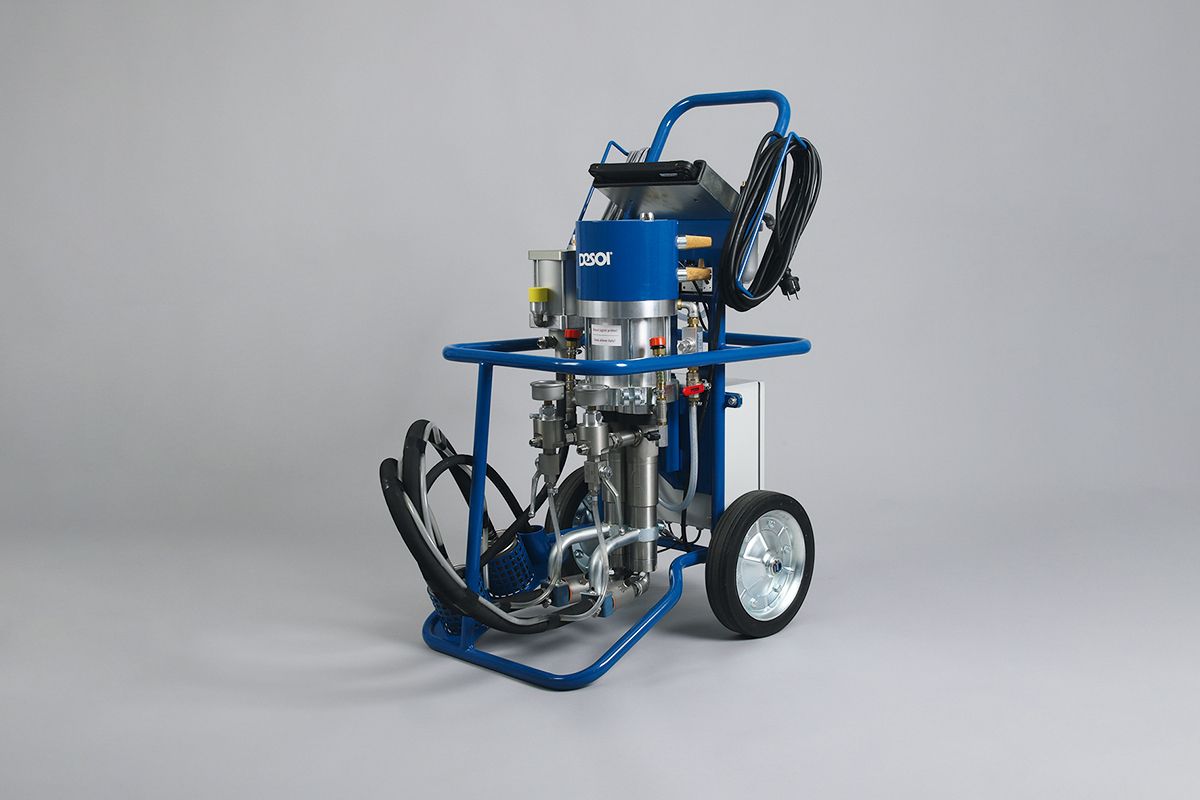

The combination DESOI w.i.l.m.a. and DESOI AirPower M35-3C VA is ideal for injection work with acrylic gel. The piston pump achieves a delivery rate of max. 13 l/min at a mixing ratio of 1:1 and is equipped with a separate rinsing pump. The sealing sets inside are protected by an integrated spring pre-tensioned, manual re-tensioning is not necessary. DESOI w.i.l.m.a. monitors and documents the material consumption, the injection pressure and the mixing ratio.
Accessories
